Our Products
Aluminium Pressure Die Casting
Precicraft, leading manufacturer of Aluminium and Zinc parts cater to the needs of various industrial and domestic applications. We manufacture wide ranges of pressure die casting parts and they are offered in both customized models and standard models.

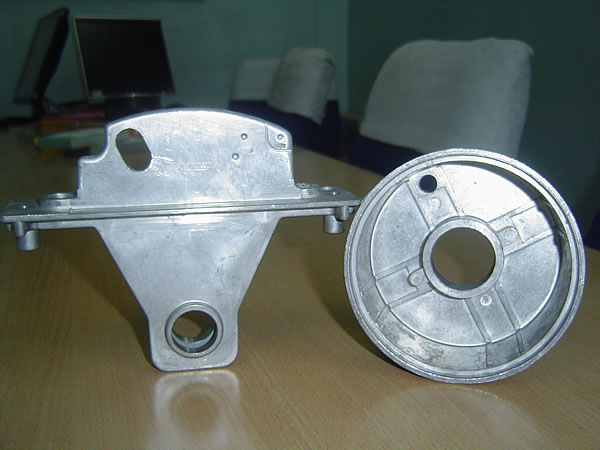

Zinc Die Casting

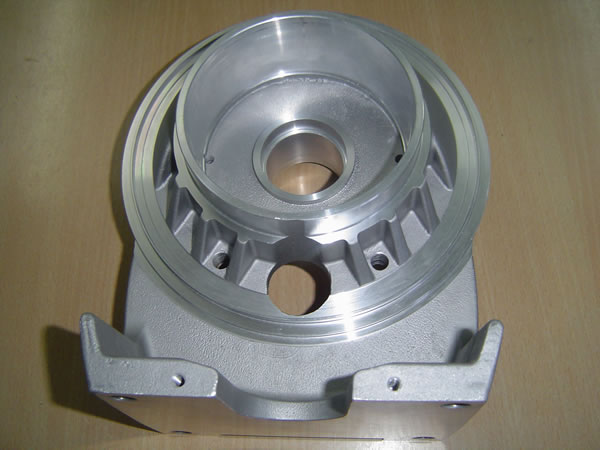

Aluminium Gravity Parts
We are manufactured made using various alloys of aluminium as per costumers requirement and usage

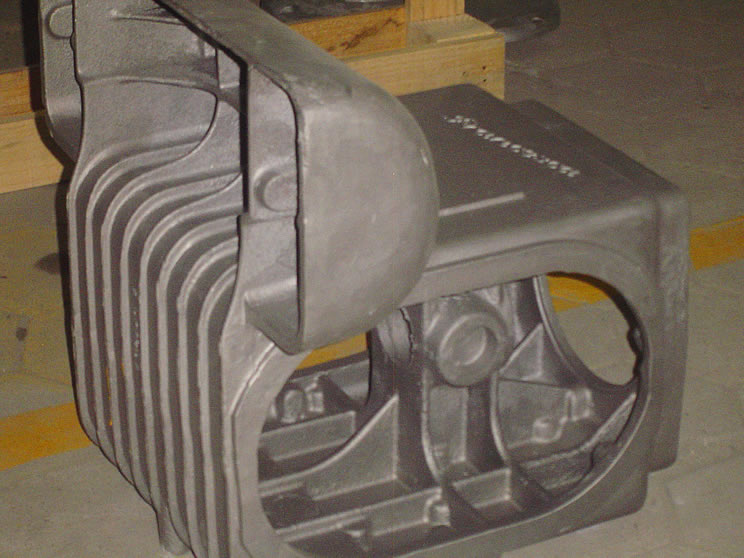

Sand Castings
With our qualitative range and customer oriented services, we also manufacture high quality sand casting parts.

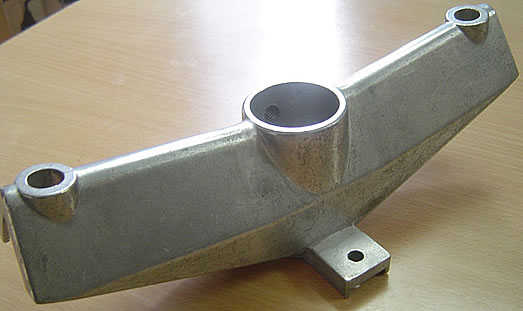

Components
We manufacture different range of aluminium parts which are used for various industrial purposes and they include textile parts, automobile parts, Telecommunications parts, Electrical parts and much more to any field in Engineering.

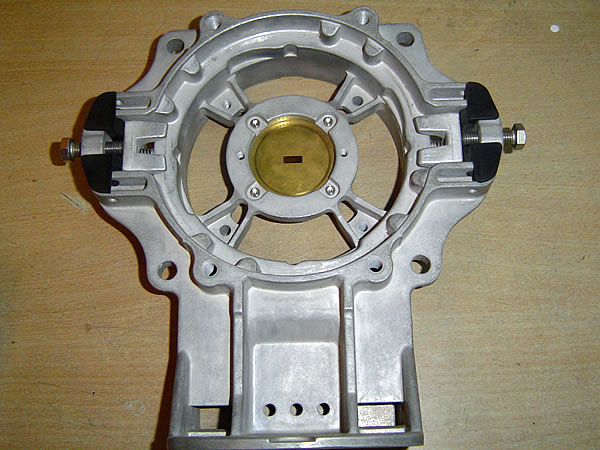

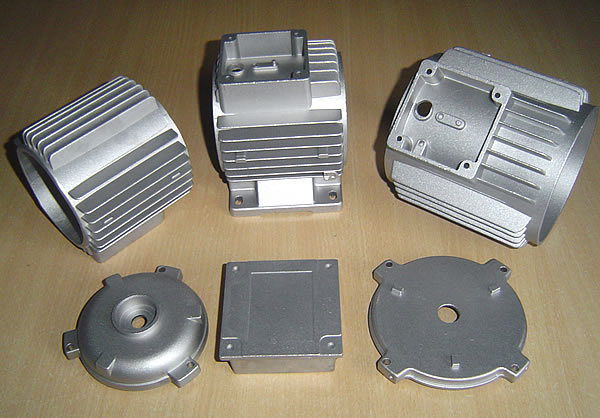

Motor Body
Used in general engineering and in pump industriery

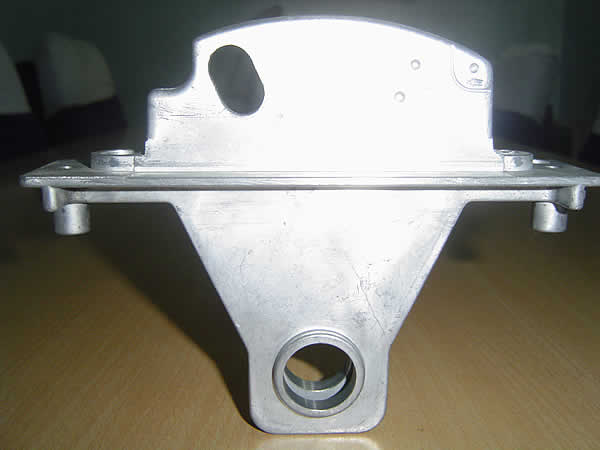

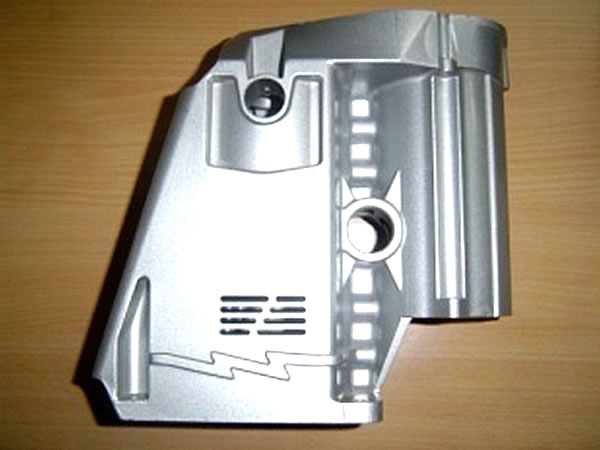

Drilling Machine Enclosure
|
| Material Used |
ALSI11CU3 |
| Casting Type |
Pressure Die Casting |
| Criticality |
Complicated profile manufactured by using huge core assembly |
| Applications |
Used in Portable Drilling machines |
| Part Weight |
2000 gms |
|

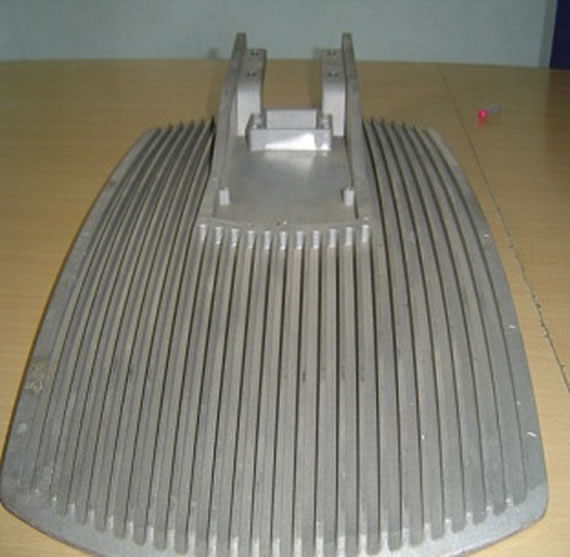

LED Casing
|
|
| Material Used |
ALSI11CU3 |
| Critical Parameters |
Component Size 535 mm x 280mm and Very fine M3 size tapping 54 no’s |
| Casting Type |
Pressure Die Casting |
| Surface Coating |
Painting coating applied for a thickness 40 microns |
| Applications |
Used as LED Light Casing |
| Part weight |
3000 gms |
|

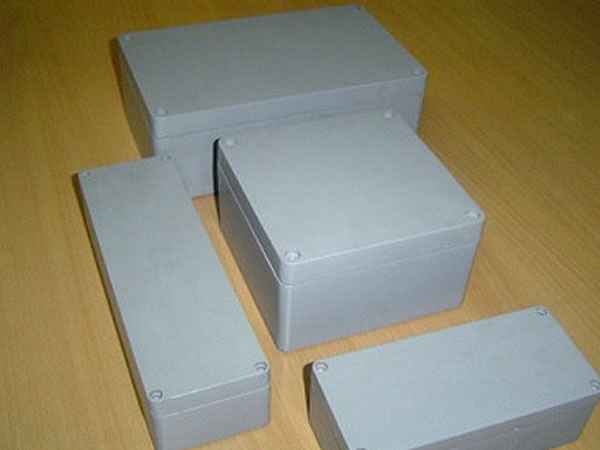

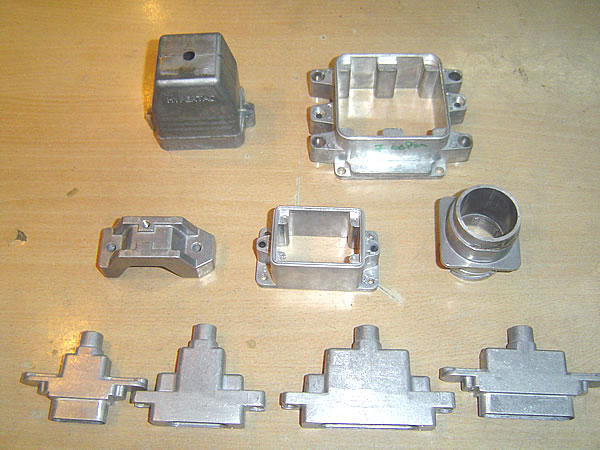

Electrical Enclosures
|
|
| Material Used |
Copper free alloy ENAC44300 |
| Casting Type |
Pressure Die Casting |
| Critical Parameters |
Manufactured and processed for a Good aesthetic look to be free from even minute level scratches. Powder coated. Machining, Component Assembly includes Gasket assembly done perfectly in inhouse |
| Applications |
Used for electrical assembly in huge machineries and in various other places of electrical field |
| Part Weight |
Ranges from a Min - 530 Gms to Max - 2000 gms |
|
Pneumatic Parts
|
|
| Material Used |
ALSI11CU3 |
| Casting Type |
Pressure Die Casting |
| Critical Parameters |
Machined for a very critical size of dia 0.8mm holes |
| Applications |
Used for textile spray gun assembly |
| Part Weight |
0.039kg (top), 0.022kg (bottom) |
|
|
|
| Material Used |
ALSI12 |
| Product |
Pneumatic, Fully machined in CNC, Machined bore finish Ra 0.8 |
| Critical Parameters |
Stringent molten metal process,
Good surface finish,
Critical gating design, Pressure test done for 120 sec @ 10 bars. |
| Applications |
Used for Pneumatic cylinder assembly |
| Part Weight |
min - 0.070 kg max - 0.780kg |
|

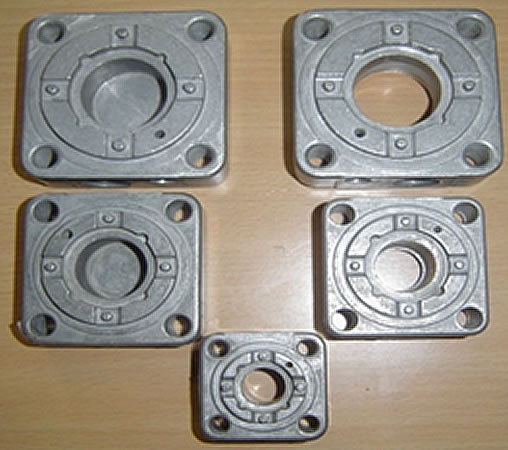

Bearing Brackets
|
|
| Material Used |
ALSI11CU3 |
| Casting Type |
Pressure Die Casting |
| Critical Parameters |
Machining & Burnishing Tolerance maintained within 14 microns |
| Applications |
Used for Submersible pump |
| Part Weight |
0.210 kg |
|
Housing
|
|
| Material Used |
ALSI11CU3 |
| Casting Type |
Gravity Die Casting |
| Critical Parameters |
Maintained very close tolerance 0.05mm & critical machining operations |
| Applications |
Used as Housing in Assembly |
| Part Weight |
3.500 kg |
|
Engine Parts
|
|
| Material Used |
ALSI7MG |
| Casting Type |
Gravity Die Casting with to Heat treatment |
| Critical Parameters |
Maintained 0.03mm tolerance in cylinder bore |
| Applications |
Used in engines |
| Part Weight |
1800 gms |
|

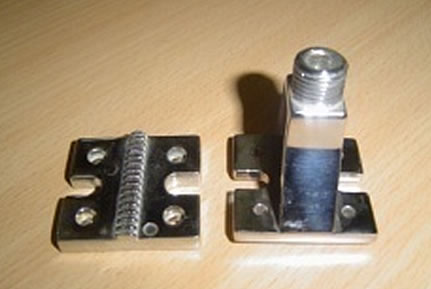

Zinc Parts
|
|
| Material Used |
ZINC MAZAK 5 |
| Casting Type |
Pressure Die Casting |
| Critical Parameters |
Maintained 0.02mm tolerance |
| Applications |
Used for Electrical switch assembly |
| Part Weight |
0.560 kg |
|
Gear Box Support
|
|
| Material Used |
Al Si9 Cu3 (Fe) |
| Casting Type |
Sand Casting |
| Critical Parameters |
Part weight around 36 kg manufactured by sand casting method |
| Part Weight |
Min - 8.5kg from to Max - 39.55kg |
|

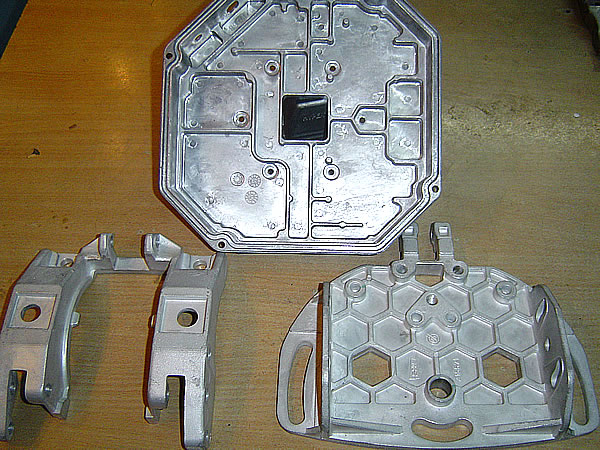

Tele Communication Parts
|
|
| Material Used |
ENABALSi11CU2 (Fe) |
| Casting Type |
Pressure Die Casting |
| Critical Parameters |
Component having very intricate shape |
| Part Weight |
1250gms |
| |
Part supplied with sub assemblies |
|
Tele Communication Parts
|
|
| Material Used |
ENABALSi11CU2 (Fe) |
| Casting Method |
Pressure Die Casting |
| Casting Type |
Pressure Die Casting |
| Critical Parameters |
Component having very intricate Ribs in the inner side of the component
And ribs in the sides. Machined with close attention for tapping of M2.5 mm 15 holes
|
| Part Weight |
850gms |
| |
Part supplied with small sub assemblies |
|
Cable Casing
|
|
| Material Used |
ADC12 |
| Casting Method |
Pressure Die Casting |
| Casting Type |
Pressure Die Casting |
| Critical Parameters |
Component casted with three critical cores and critical ribs in the component |
| Part Weight |
150gms |
| |
Part supplied with Machining and surface coating |
|
Speedometer Hub
|
|
| Material Used |
ADC12 |
| Casting Method |
Pressure Die Casting |
| Critical Parameters |
Molded with EN1A mild steel insert |
| Part Weight |
150gms |
| |
End User Yamaha, Part supplied with Machining |
|

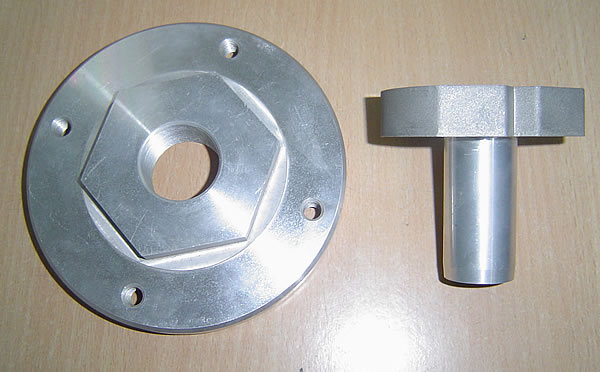

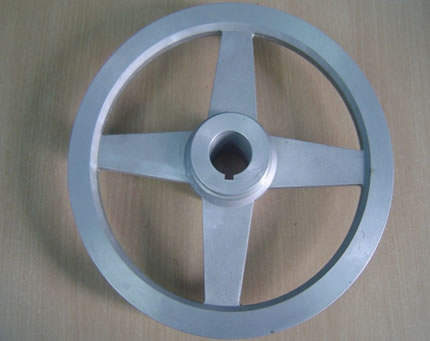

Pulleys
|
|
| Material Used |
ADC12 |
| Casting Method |
Pressure and gravity Casting |
| Critical Parameters |
Fully Machined to requirement tolerance |
| Part Weight |
350 to 1000 gms (Size from 4"-10") |
| |
All engineering application |
|
Textile parts
|
|
| Material Used |
ENAC-ANSI8CU3 |
| Casting Method |
Pressure Die Casting |
| Critical Parameters |
Parts Casted and finishes in Vibro Machine for its Polished Aesthetic appearances |
| Part Weight |
150gms |
| |
Part supplied with Machining |
|
